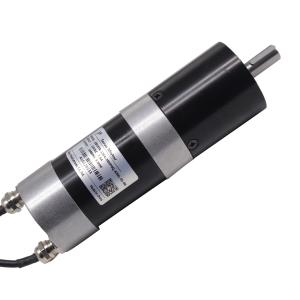

Product description
1. Power 130W, voltage DC24V;
2. Servo motor and precision planetary reducer integrated design, suitable for installation in the cylinder;
3. Motor with 1000 wire magnetic plaiting, suitable for vector control, accurate positioning;
4. Motor with 1:26 metal planetary reducer, suitable for 300 mm channel (acrylic) 0.3 seconds to open the door;
5. The service life of motor opening and closing is not low voltage 10 million times, and the third party testing structure identification;
6. The motor grease is made of low-temperature resistant material, which is suitable for the ambient temperature from -25 degrees to 70 degrees. 7. The noise is lower than the traditional planetary reducer, reaching 58 dB;
8. Comply with CE export standards
9. Waterproof joint technology of rear end cover prevents dust and water vapor from entering the encoder
10. Round body, integrated structure of motor and reducer, suitable for passage gate movement structure;
11. The body is equipped with a 1000-line incremental encoder with a standard 1:20 reduction ratio to achieve high-precision control
of movement.
Features
- 300mm acrylic door panel, opening time up to 0.3 seconds
- Cooperate with the servo vector algorithm, can achieve sensitive anti-pinch protection.
- Th Service life is not less than 6 million times. Authoritative appraisal by third party testing institution.
- With servo closed loop control, can achieve 3 times current overload, strong push resistance .
- High-resolution position feedback with 2400 lines can realize accurate positioning.
Specification
| Model Number | EBS57R-A3 |
| Certification | ce |
| Type | SERVO MOTOR |
| Torque | 9.3nm |
| Speed(RPM) | 100RPM |
| Continuous Current(A) | 6.5A |
| Encoder | 1000 |
| Ratio | 1:26 |
| Nominal Speed | 2000RPM |
| Nominal Power | 130W |
| Poles | 8 |
| Nominal Voltage | DC 24V |
| Nominal Current | 7.9A |
| Nominal Torque | 0.5Nm |
Company profile
Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.
FAQ
Q1: What is the MOQ?
A: MOQ depends on our clients demands, we welcome trial order before mass production. We generally recommend a minimum order of 2 units as a sample trial.
Q2: How do you do after-sale service?
A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
Q3: How about the payment method?
A: Standard products: 30% deposit, 70% balance payment before shipment.
Q4: How about the lead time?
A: Normally we have stock for the hot sale models of standard products.
Regular products need 7-10 working days. The customized products need 15-20 working days.
Q5: How long is your warranty period?
A: One-year guarantee & Life-time technology support.
